Adapta ATA 100 Setup and Configuration Guide

This hard phone is another ATA (analog telephone adaptor). It enables you to connect your POTS (plain old telephone system) phones to the Internet. Think of it as a phone jack for VoIP. It has one ethernet port and one RJ11 phone jacks. Out of the box, it is configured for DHCP. This means that it gets its IP address from your DHCP server automatically.

NOTE: We have seen instances where installing the Adapta behind a firewall which blocks ICMP packets causes problems with registration. Try turning off any ICMP blocking on your firewall.

STEP 1

You must first determine what IP address it received. To do this, you need to pick up the phone attached to the Line 1 jack and

dial: **00 (2 asterisks and 2 zeroes)

then dial: 20#

and you will be told the IP address of your device (e.g. 192.168.0.100)

STEP 2
Go to any browser equipped computer on your network and enter the address: http://<IP ADDRESS>/
(where <IP ADDRESS> is replaced by the address that was given to you in STEP 1.

STEP 3
Click on the "Admin Login" button near the top right side
of the screen.

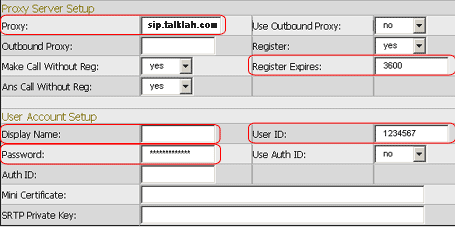

STEP 4 You need to modify only a few parameters from the factory default. They are listed here:
SIP Server:	sip.TalkLah.com
Display Name:	Enter your full name, this will show up as part of your callerid.
User ID:	Enter the phone number you chose when you signed up for TalkLah service.
Password:	Enter the password that you chose when you signed up for TalkLah service.
Register Expires:	3600

STEP 5
Click on the "Submit Changes" button at the bottom of the form.

STEP 6
Make calls!
