Device Configuration Guides

Grandstream GXP 2000

Grandstream GXP-2000 is a next generation enterprise IP telephone based on open industry standards. Built on innovative technologies, GXP-2000 features market leading superb audio quality, rich functionalities, and excellent manageability at affordable prices.

NOTE: Do not use the '#' button to 'send' your calls; use the 'send' button instead. There are some instances where pressing '#' will not work as expected.

STEP 1
You must first determine what IP address it received. To do this, press the round menu button, then the down arrow next to it until the display shows:

[2] IP Addr

Now, press the round menu button again and you will be shown the IP address of your device (e.g. 192.168.0.100)

STEP 2
Go to any browser equipped computer on your network and enter the address:

http://<IP ADDRESS>/

(where <IP ADDRESS> is replaced by the address that was given to you in STEP 1.

STEP 3
You will be prompted to enter a password (the default is "admin"); then click the "Login" button.

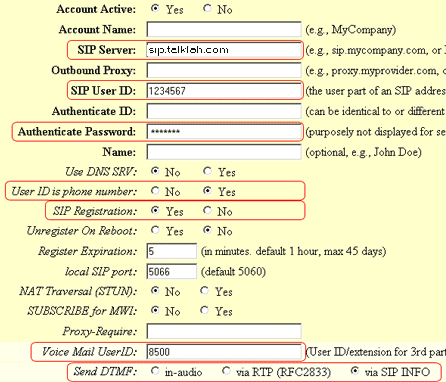

STEP 4 Click on “Account 1” to configure your first line.
SIP Server:	sip.TalkLah.com
SIP User ID:	Enter the phone number you chose when you signed up for TalkLah service.
Authenticate Password:	Enter the password that you chose when you signed up for TalkLah service.
User ID is phone number:	Yes
SIP Registration:	Yes
Voice Mail User ID:	8500
Send DTMF:	via SIP INFO

STEP 5
Click on the "Update" button at the bottom of the form.

STEP 6
You will be brought to a confirmation screen on which you will click on the only option available: "Your configuration changes have been saved. They will take effect on next reboot."

STEP 7
If necessary, continue to configure account 2 to 4. Follow Step 4 to Step 6

STEP 8
When all accounts are configured, click on the "Reboot" button at the bottom of the form.

STEP 9
Make calls!
