Linksys PAP2-NA Phone Adapter
The Linksys Phone Adapter enables use of our high-quality feature-rich telephone service through your cable or DSL Internet connection. Just plug it into your home Router or Gateway and use the two standard telephone jacks to connect your existing phones. Each phone jack operates independently, with separate phone service and phone numbers -- like having two phone lines. With TalkLah, you'll get clear telephone reception, even while using the Internet at the same time for normal data operations.
You must first determine what IP address it received. To do this, you need to pick up the phone attached to the Line 1 jack and
dial: **** (four asterisks)
then dial: 110 #
and you will be told the IP address of your device (e.g. 192.168.0.100). |
Go to any browser equipped computer on your network and enter the address:
http://<IP ADDRESS>/
(where <IP ADDRESS> is replaced by the address that was given to you in STEP 1. |
Click on the "Admin Login" button near the top right side of the screen, then click on the "Line 1" tab.
 |

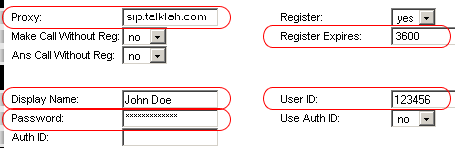

You need to modify only a few parameters from the factory default. They are listed here:
|
| Proxy: |
sip.TalkLah.com |
| Display Name: |
Enter your full name, this will show up as part of your callerid. |
| User ID: |
Enter the phone number you chose when you signed up for TalkLah service. |
| Password: |
Enter the password that you chose when you signed up for TalkLah service. |
| Register Expires: |
3600 |
 |
To save bandwidth, you can change Line 1 "Preferred Codec" to G729a. Also change the "Use Pref Codec Only" to No. You can only do this for one line. So, if Line 1 is on G.729a, Line 2 has to be some other codecs. We do not support G.723.
|
Click on the "Save Settings " button at the bottom of the form. |
 |
"How do I upgrade Linksys PAP2-NA firmware?
Go to your web browser and type in: http:// Linksys-ip-address/admin/upgrade?http://www.TalkLah.com/linksys/PAP2.bin
"Linksys-ip-address" is the IP address you receive when dialing **** and 110 when prompted. The device will speak the IP address you need to insert.
PAP2 will upgrade to the new firmware when it is not in use. Fast blinking of the Status LED indicates that firmware upgrade is in progress. Please do NOT unplug the power while the Status LED blinking rapidly."
|
|
